Vickers HV Reference Blocks 65mm Ø x 15mm – For Loads 100kg to 2kg

Name: Vickers HV Reference Blocks 65mm Ø x 15mm - For Loads 100kg to 2kg
SKU: 103155
Availability: InStock

£200.00

Hardness Load / Scale kg :

Hardness Value :

Hexagonal Grid :

Material :

Certificate Required :

Clear

Description

HV Reference blocks are calibrated with a Vickers Standardizing Diamond Indenter.
Load applied is from 100kg to 2kg, depending on scale selected.

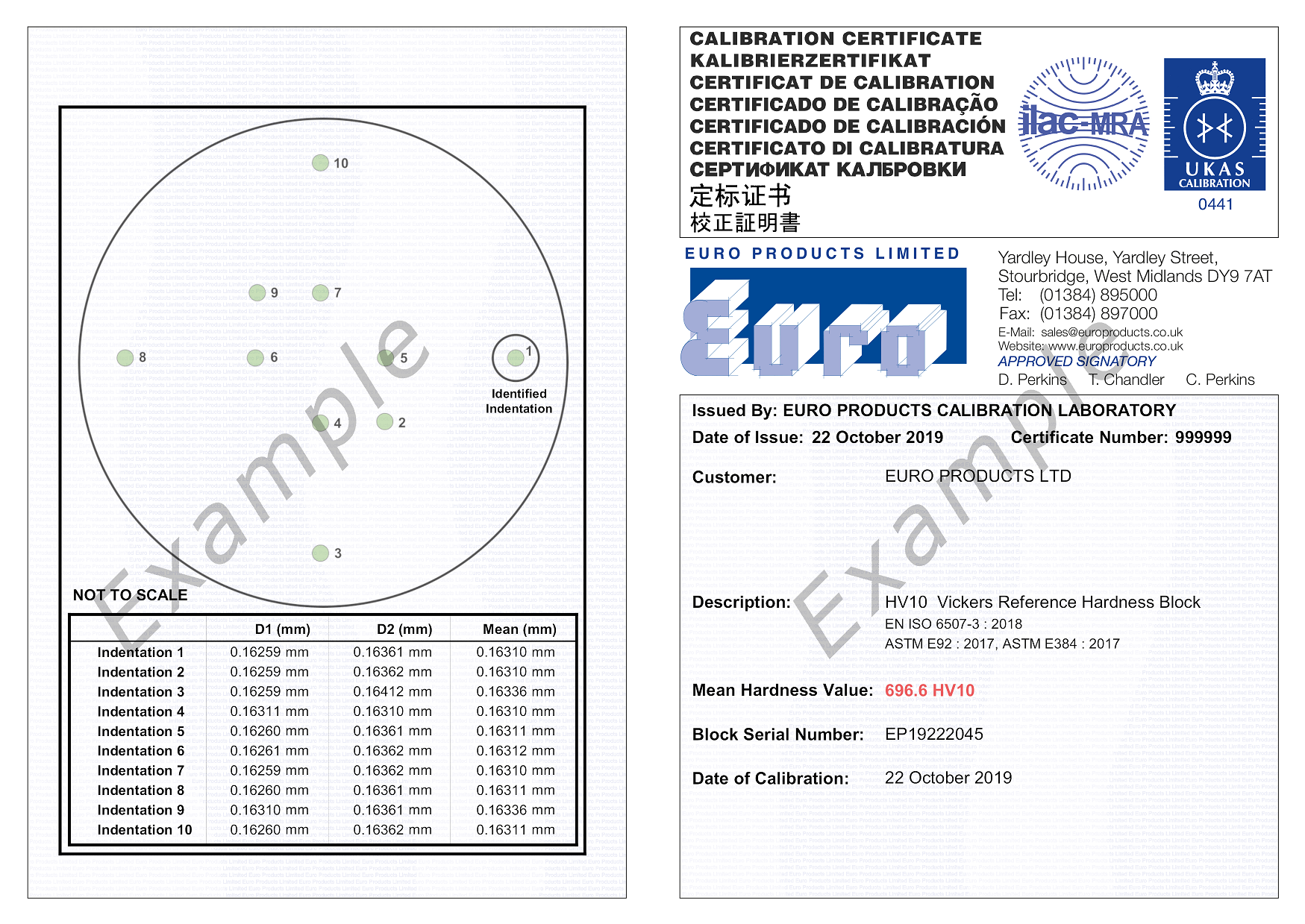

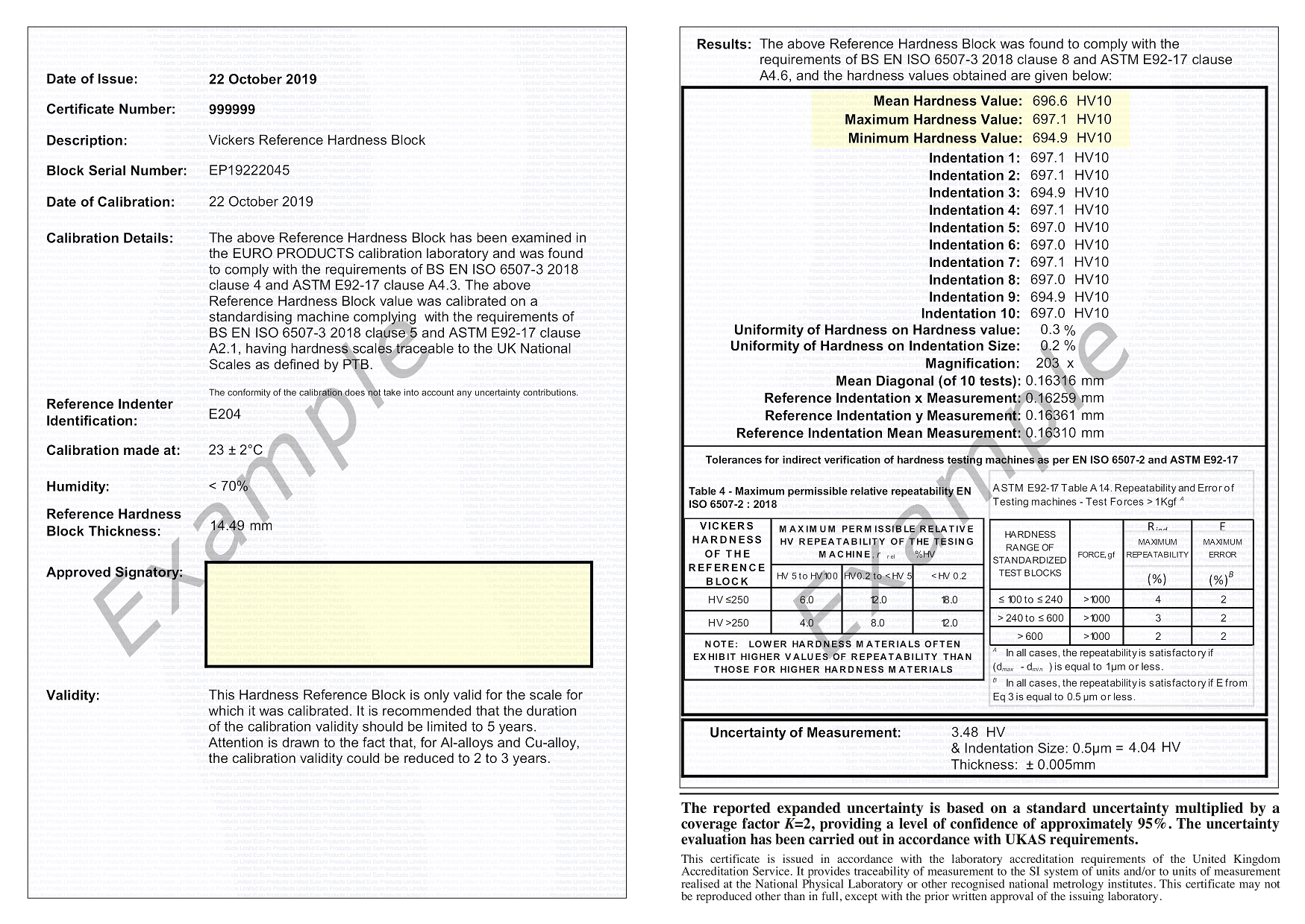

All blocks are supplied with a UKAS or EURO certificate.
Nominal values selected are supplied within ± 15 HV. (For example if you select 200 HV, we will supply anything from 185 HV to 215 HV. We will always try our hardest to get as close to the nominal value as possible.)
Uncertainty of Measurement : As per our UKAS schedule.

Hardness Load / Scale kg :	100kg, 50kg, 30kg, 20kg, 10kg, 5kg, 3kg, 2.5kg, 2kg
Hardness Value :	40, 70, 100, 150, 200, 250, 300, 350, 400, 450, 500, 550, 600, 650, 700, 750, 800, 850, 900, 950, 1000, 1050
Hexagonal Grid :	NO GRID, CORRECT SIZE AS PER THE STANDARDS, 2mm, 2.5mm, 3mm, 3.5mm, 4mm, 4.5mm, 5mm, 5.5mm, 6mm
Material :	Steel, Aluminium
Certificate Required :	UKAS, EURO
